Test Rig – A320 Main Landing Gear (MLG)

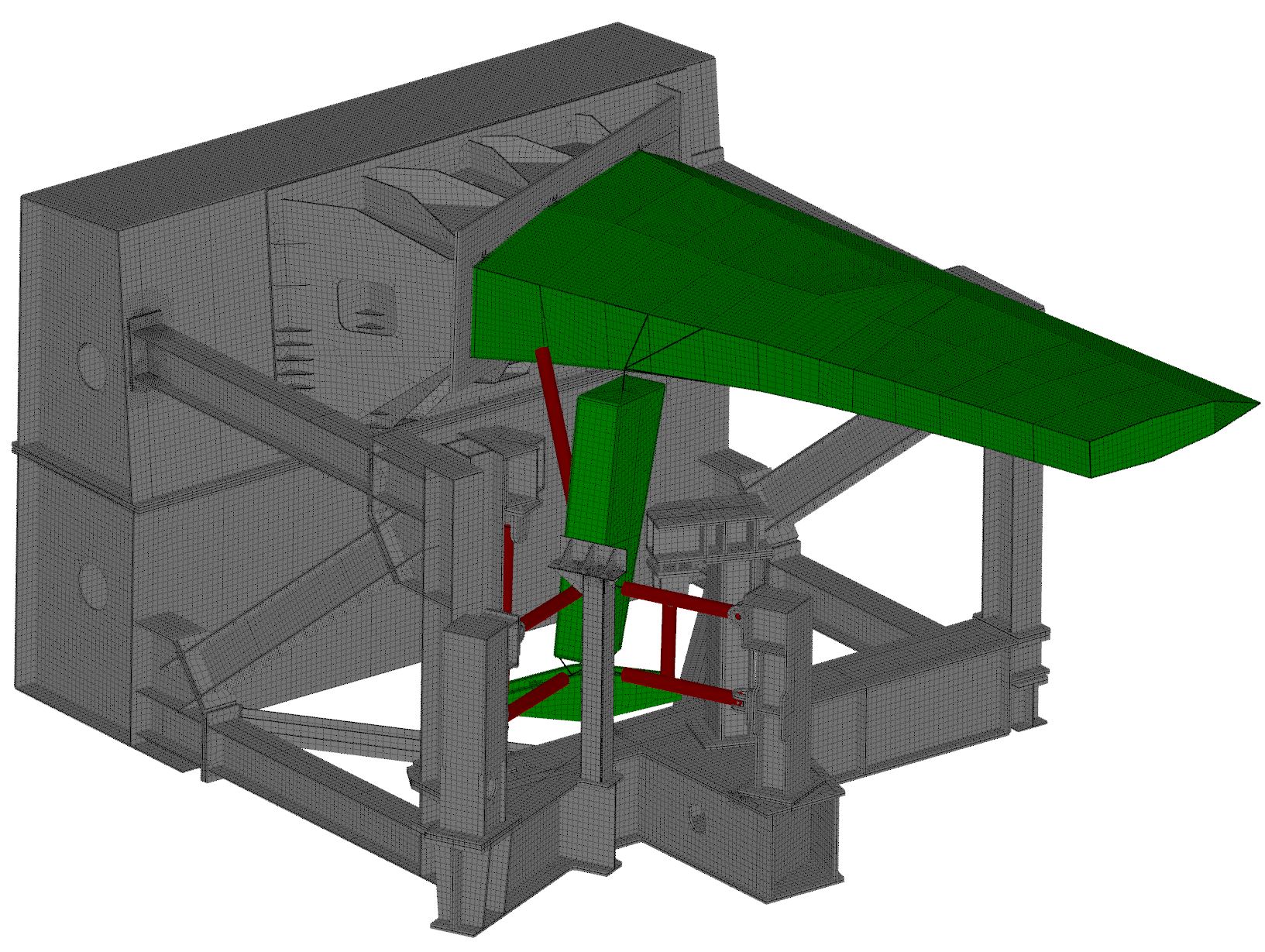

The test stand is used to hold a reduced wing of the A320. The loads are introduced into the test specimen via a dummy leg with hydraulic cylinders.

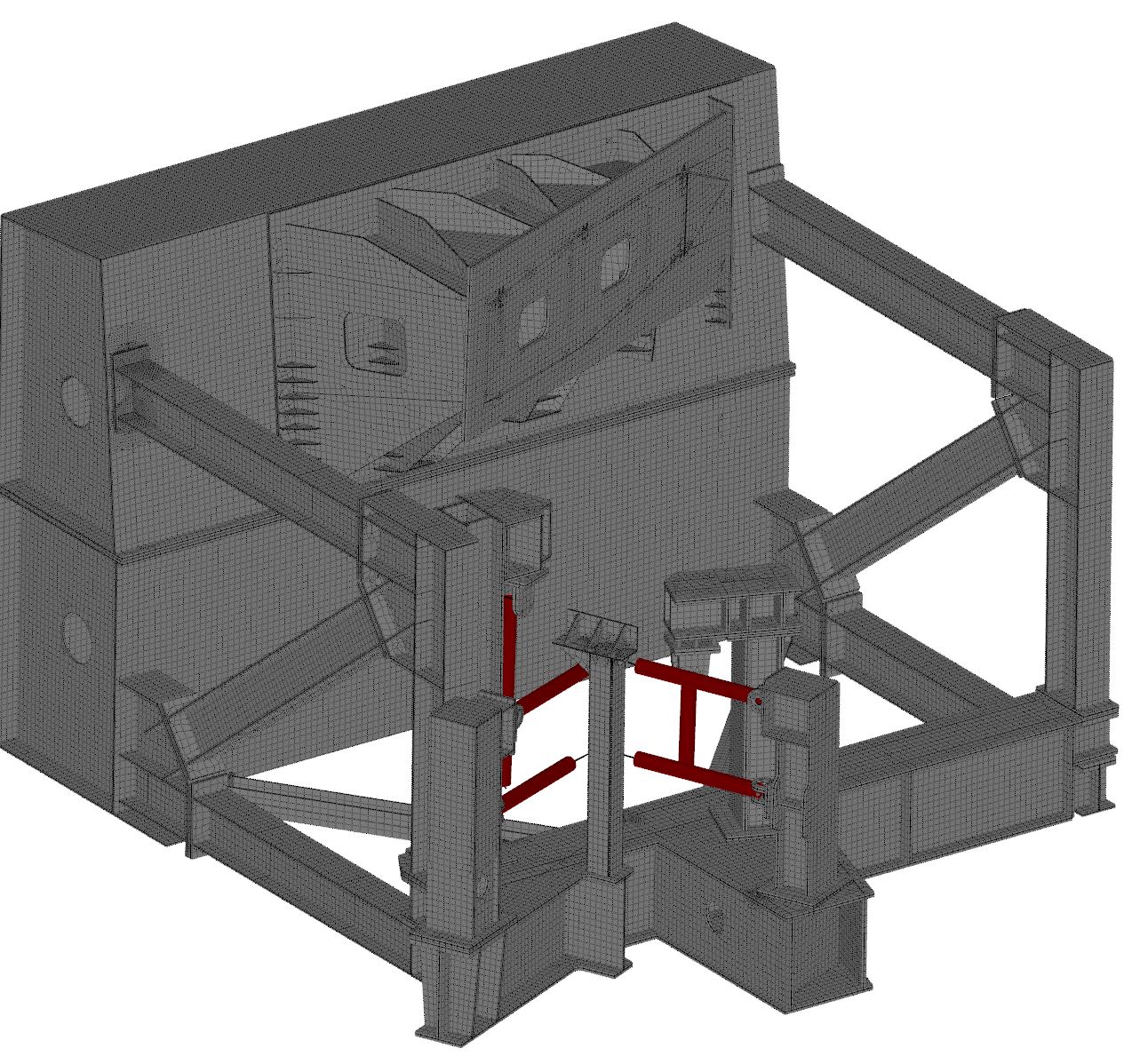

The test stand is placed at three points. The supporting structure of the test stand is formed by two boxes and a welded base frame, which are connected to each other by two vertical and one horizontal truss.

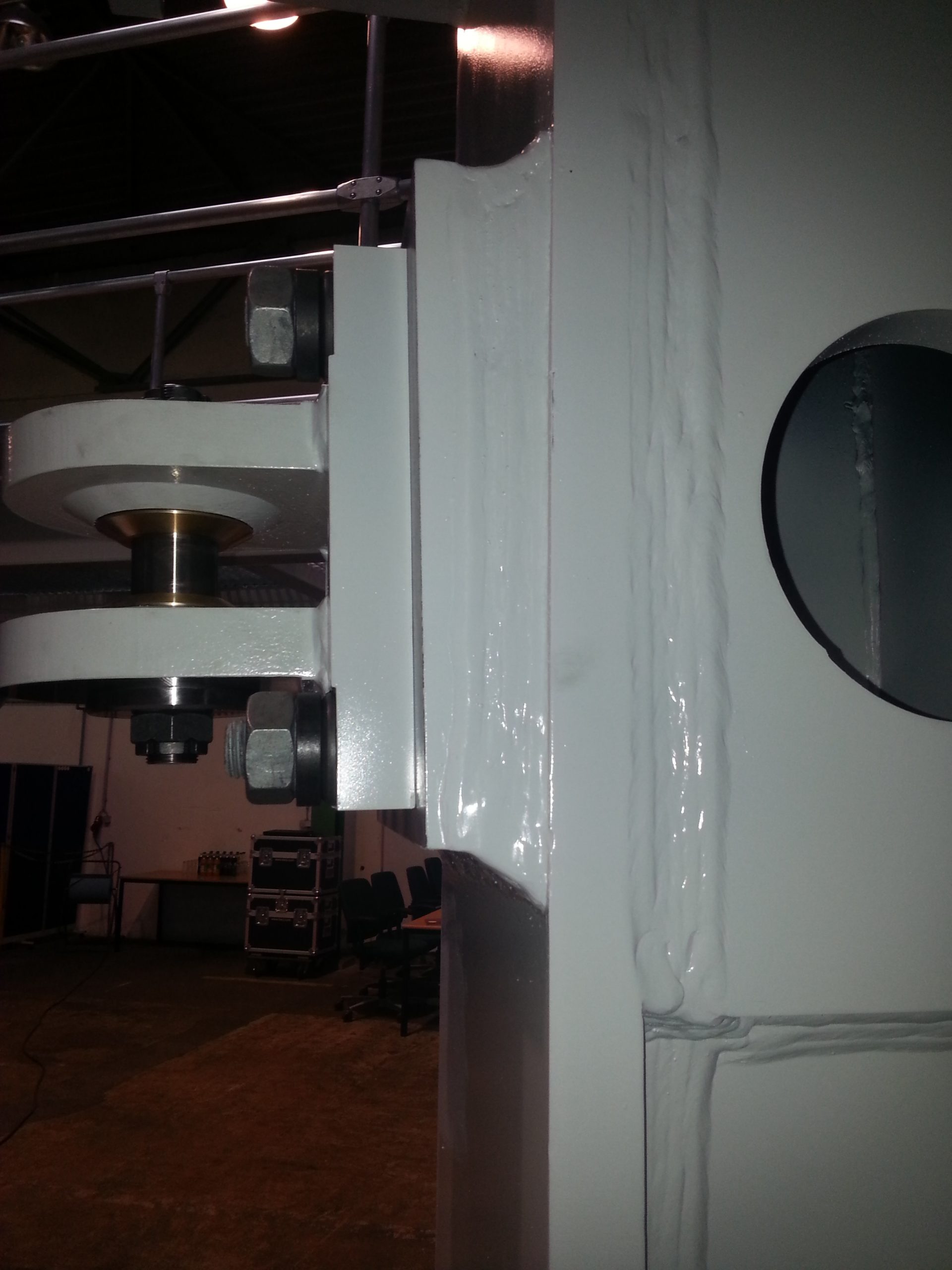

All necessary components such as the cylinder mounts and the platforms are connected to the basic carrier.

Length | Width | Height | Weight:  7,3 m | 6,2 m | 4,4 m | 60 t
